Description

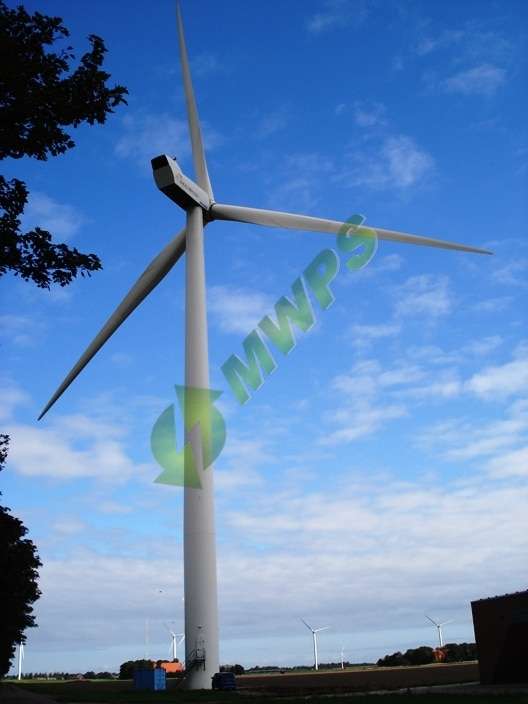

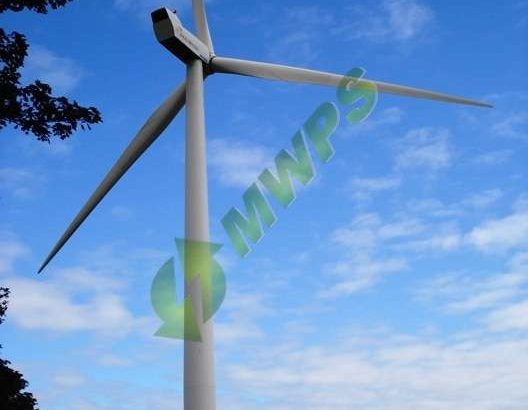

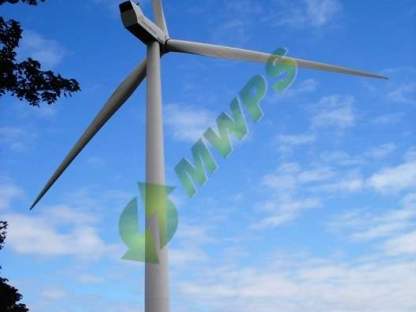

NEG Micon NM92 – 2.75mW Wind Turbine immediatly available
Price is ‘As is’ ‘Where is’ – ExWorks owners site plus 7% sales commission
Full service history available
OPERATING DATA NM92
- Nominal output 2750 kW
- Output regulation PRVS
- Nominal wind speed 14 m/sec
- Cut-in at 4 m/sec
- Cut-out at 25 m/sec
Rotor
- Rotor diameter 92 m
- Swept area 6648 m2
- Number of blades 3
- Rotor revolutions 15.6 rpm
Drive train
- Gear type 3 step planetary/helical hybrid
- Gear ratio 1:70.65
- Main shaft Forged shaft and flange
- Main bearing Spherical roller bearing
- Cooling Oil cooling with pump
Generator
- Type Double-fed
- Asynchronous generator
- Voltage – stator 960 V
- Voltage – rotor 690 V
- Nominal frequency 50 Hz
- Rated power 2750 kW
- Cooling Water
Yaw system
- Type Double ball race with
- Internal gearing
- Yaw brakes 5 hydraulic brake callipers
- Yaw motor/gears 5 electrically driven
- Planetary gears
Tower
- Type Conical steel tower
- Painted
- Hub height 70 m or depending on location
Control
- Type Computer controlled
- Cut-in system Soft with frequency
- Converters
- Remote monitoring Modem
Lightning protection
- Superstructure to most recent international norms.
PLEASE NOTE
- Inspections can be arranged by issuing a signed letter of intent.
- No time wasters, please
