Description

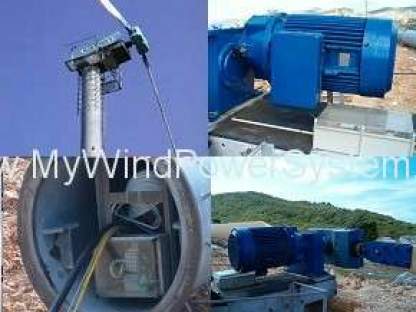

ONE LAGERWEY WIND TURBINE LW15/75 – 75kW
(can be de-rated to 60kW or 50kW for Italy by using a 50 kW fitted Generator)
Price upon request ‘where is – as is’ Ex-Works owner’s site
TECHNICAL DATA OF THE LAGERWEY 15/75
GENERAL
- Design according to NEN 6096
- Certified by CIWI (ECN) – Holland
- Cut in windspeed 3 m/sec.
- Nom. windspeed 12 m/sec.
- Cut out operating windspeed 25 m/sec.
- Max. survive windspeed 60 m/sec.
- Nominal power 75 kW – 60kW or 50kW de-rated (upgrade to WAGO control system required if de-rating form 75kW to 60kW required)
ROTOR
- Number of blades 2
- Rotor position upwind
- Diameter 15 m
- Power regulation passive: blade-angle adjustment (required for de-rating to 60kW)
BLADES
- Blade length 7,5 m
- Chord 500 – 625 mm
GEARBOX
- Number of stages 2
- Manufacturer Flender, Germany
GENERATOR
- Type asynchrony
- Nominal power 75 kW or de-rated to 60kW for Italy (with power output certification) or 50kW generator can be fitted
- Number of poles 4
- Nominal voltage 400 volt
- Frequency variable: 40 – 80 Hz.
- Protection IP 55
- Manufacturer ABB or equal quality
GRID-CONNECTION
- Converter diodebridge – mutator
- Converter principle AC – DC – AC
- Powersupply 400 V / 3 fase / 50 Hz.
TOWER
- Type cylindrical pipe
- Number of sections 3
- Hub height 30m
- Material hot dip galvanised steel
- Location ascent external
YAW-SYSTEM
- System active
- Signal based on windvane
- Driven by e-motor with worm-wheel reduction
CONTROLLER
- Control by Microprocessor
- Remote monitoring optional; typically via the public telecommunications network
- Upgrade to WAGO control system – 100% remote control unit from you PC or Laptop
SAFETY
- Aerodynamic break by aerodynamic torque
- Safety measures – passive blade-angle adjustment
PLEASE NOTE
- Inspections can be arranged by issuing a signed letter of intent.
- No time wasters, please
