Description

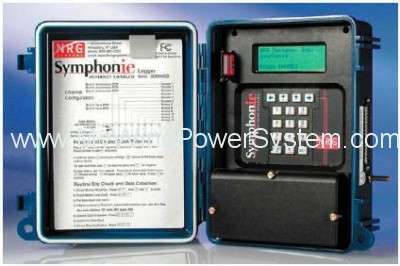

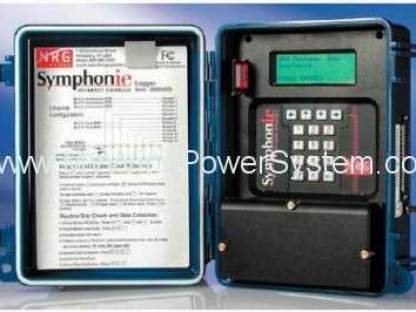

1 x Complete NRG Symphony Data Logger
Wind Monitor System For Sale!
Only £1,800 FOR COMPLETE SYSTEM!
- Internet Ready!
- 1.5 years old –
- Still in operation (can be viewed operating)
- On 30m NRG Mast
- 3 x NRG #40 Calibrated Anemometers currently operating @ 15m, 20m and 30m)
- NRG #200P Wind Vane
- Symphony GSM iPack
- Built in PV Power Supply system incl. PV Panel
- Temperature Sensor Pack
- Data Logger Housing with 2 pad locks
- Mounting booms and all associated cabling
This System produces ‘Bankable’ data in 10 seconds interval which can be send to four separate email addresses in either daily – weekly or monthly intervals!
Date of system installation: 2nd February 2012 – Logger serial no. 309003469
Tower Manufacturer & Model: NRG Series 1 30m met mast
Detailed diameter of tower sections: Uniform 150 mm diameter tube from base to 30m
Guy set intervals: 9m, 18m, 27m
Instrument mounting boom dimensions:
- NRG Anemometer Boom length: 1.5m Boom diameter: 14mm Vertical separation from Boom to cup centre: 230mm
- NRG Wind vane Boom length: 1.5m Boom diameter: 14mm Vertical separation from Boom to vane: 185mm
Instrument Details – Anemometers
- A1: 30m NRG #40 calibrated anemometer Serial No. 185309 extended at 270 degrees connected to channel no.1
- A2: 30m NRG #40 calibrated anemometer Serial No. 185305 extended at 90 degrees connected to channel No.2
- A3: 15m NRG #40 calibrated anemometer Serial No. 195236 extended at 90 degrees connected to channel No.3
- Wind vane: 1 x NRG 200P wind vane installed at 28m, extended at 360 degrees, connected to channel no.7
DOWNLOAD TECHNICAL SPECIFICATION:
PLEASE NOTE
- Inspections can be arranged by issuing a signed letter of intent.
- No time wasters, please
